美国CIRS公司711-HN头部及诊断模体

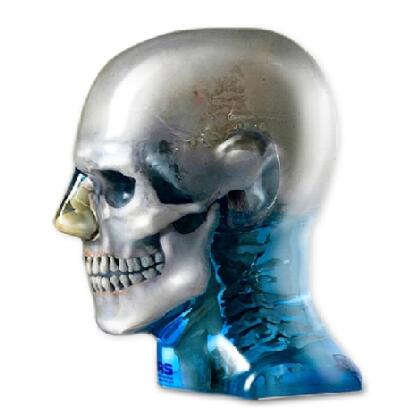

ATOM Max Dental & Diagnostic Head Phantom

The Model 711-HN provides a consistent tool for researchers, clinicians and technologists. It is ideal for determining optimum system settings, commissioning new equipment, monitoring system performance and training in dental X-ray, panoramic X-ray, CT and cone beam CT procedures.

The phantom includes an adjustable stand for positioning within a cone beam CT or panoramic X-ray system. The jaw of the phantom is slightly opened and front teeth are vertically aligned to replicate correct positioning with a bite guide. Please note that an actual bite guide cannot be positioned in this product.

The phantom is constructed of proprietary tissue equivalent materials. ATOM®Max is made of tissue simulating resins that mimic the X-ray attenuation properties of human tissue for both CT and therapy energy ranges (50 keV-25 MeV). The Model 711-HN approximates the average male human head in both size and structure. The phantom includes detailed 3D anthropomorphic anatomy including brain, bone, larynx, trachea, sinus, nasal cavities and teeth. The bones contain both cortical and trabecular separation. The teeth include distinct dentine, enamel and root structure including the nerve. The sinus cavities are fully open.

Features and Benefits

• Includes detailed anatomical features
• Frankfurt plane identified to ensure proper alignment
• Tissue Equivalent from 50 keV to 25 MeV
• Positioning stand with six degrees-of-freedom

• Overall Size (phantom only): 7.1" x 8.8" x 10.6"
• Phantom Weight: 14 lbs.
• Stand Weight: 7 lbs.
• Shipping Weight: 31 lbs.
• Phantom Materials: Epoxy Resin

Materials Included

• (1) ATOM®MAX Dental & Diagnostic Head Phantom
• (1) Positioning Stand w/ soft sided carry case
• (1) Phantom carry case
• User Manual
