20W高量程紫外线功率计银线系列
（可用于测量20 W/cm2以上的LED光源）
紫外强度单位：mW/cm2 毫瓦/平方厘米
双通道x1/x10
自动开关
可充电电池
此款紫外线功率计是高质量的紫外测量仪器。
它用于测量紫外线发光强度。
测量单位为mW/cm2，用来比较和检查紫外线光源发光的均匀性。
应用领域：曝光设备，印刷喷涂，防晒用品，涂装固化，医疗生物等。
产品特点：
为了节省电池能量，银线紫外线功率计使用后会自动关闭一分钟。
银线紫外线功率计有各种不同的标准测量范围
在下订单前用户要根据具体要求选择一下不同波段：
6.2.1. UV-Meter Silver Line Diazo 350 – 460 nm
6.2.2. UV-Meter Silver Line UV-A 315 – 410 nm
6.2.21. UV-Meter Silver Line UV 380 – 420 nm
6.2.3. UV-Meter Silver Line UV-B 280 – 315 nm
6.2.4. UV-Meter Silver Line UV-C 230 – 280 nm
6.2.5. UV-Meter Silver Line Full UV 230 – 410 nm
6.2.6. UV-Meter Silver Line UV-V 395 – 445 nm
参数：
品牌：UV-DESIGN
型号：Silver Line Series
输入功率：2000W/cm2
波长：230-460 nm（可选）
环境温度：0—45℃
显示器：2x16位数显
功率可以检测到20 W/cm2，显示结果基于功率输入。
范围0 x 1：0 - 199,9 mW/cm2
范围0～10： 0 - 1999 mW/cm2
重量：约200克。
电源：3.7V可充电锂电池。
尺寸：140mm×70mmx 13mm
连接线线缆长度：1m
传感器尺寸:40 mm x 10 mm
精度：±5%
探头可超强度耐压
在传送带上可耐温132℃，不超过10S。
注意事项：为了保持精度准确，建议每年校准一次。更换电池后也有必要校正。
重要的一条：功率可以检测到20 W/cm2，显示结果基于功率输入。
UV-Meter Silver Line Series
(also available for LED measurement up to 20 W/cm2)
+ UV intensity mW/cm2
+ 2 channel x1/x10
+ auto off
+ re-chargeable accu cell

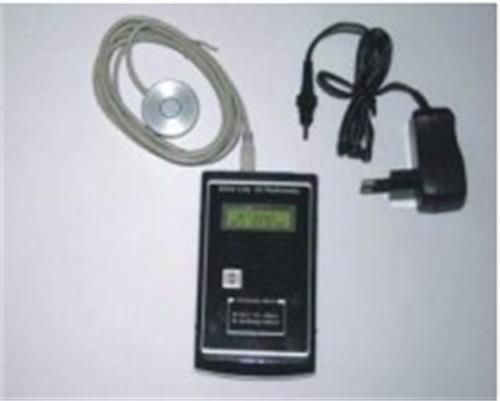

The UV-Meter Silver Line is a high quality UV measuring instrument.
It is used for the measurement of the intensity of UV light.
All measurements are expressed in mW/cm 2 in order to compare light sources or to check uniformity of the light
emission.
Typical application fields are the control of units for the exposure of diazo, polymer, chromaline and daylight films in
the graphic arts industry, suntan equipment, sterilisation units and other fields of photo bioIogy.
Special feature:
In order to save battery energy, the UV-Meter Silver Line will turn off automatically after one minute.
The UV-Meter Silver Line is available as a standard in various different measuring ranges*:
(Please state upon order)
6.2.1. UV-Meter Silver Line Diazo 350 – 460 nm
6.2.2. UV-Meter Silver Line UV-A 315 – 410 nm
6.2.21. UV-Meter Silver Line UV 380 – 420 nm
6.2.3. UV-Meter Silver Line UV-B 280 – 315 nm
6.2.4. UV-Meter Silver Line UV-C 230 – 280 nm
6.2.5. UV-Meter Silver Line Full UV 230 – 410 nm
6.2.6. UV-Meter Silver Line UV-V 395 – 445 nm
*further spectral ranges available upon request
The display readings are fictitiously. The basic setting is done by means of a potentiometer.
Technical data:
Max. Power input : sensor input 2000W/cm2
Wavelength: 315 – 410 nm UV-A (or other)
Temperature: 0 - 45 C
Display: 2x16 Digits
Range X 1 : 0 - 199,9 mW/cm2
Range X 10 : 0 - 1999 mW/cm2
Weight: approx. 200 grams
Battery: 3.7 Volt LiPO Accu Cell
Dimensions: 140 mm x 70 mm x 13 mm
Sensor cable: 1 meter
Sensor ∅ 40 mm x 10 mm
ba[x]se Accuracy: ± 5 %
The probe-type sensor of the UV-Meter can withstand max. 110° C / 132° F for up to 10 seconds. The temperature
of the housing should not exceed 45° C / 122° F.
Calibration:
In order to keep its full function and precision it is recommended to have re-calibration done once per year. Recalibration will also be necessary after change of battery. Ongoing, PTB traceable calibration with certificate
*also available up to 20 W/cm2, display resolution in relation to maximum power input
