弹性成像体模049A
用于超声弹性成像性能评定；
采用四种独立的硬度靶物质；
采用实心弹性聚合体，独立于回声特性控制其弹性；
提供10mm和20mm直径不同硬度的球体粑物质；
球体被分别定位于15mm和35mm的深度位置.产品操作说明：

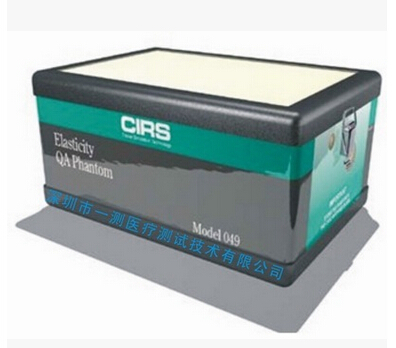

The Model 049 and 049A

Elasticity QA Phantoms are

tools developed for sonoelastography

systems. These are

the only phantoms commercially

available for sonoelastography

quality assurance.

The phantom contains targets

of known stiffness relative to

the background material and

range in stiffness, diameter

and depth.

The Elasticity QA Phantoms

are suitable for determining

the dynamic range of the

system, checking system

performance over time, demonstrating

system features

and training personnel and

customers on this rapidly

growing field. The phantoms

can also be used by researchers

developing and verifying

new techniques.

The Model 049 is a basic QA

phantom as it contains two

sizes of spheres positioned at

two different depths. At each

depth there are two spheres

that are softer than the

background and two that are

harder than the background.

For a broader range of target

sizes, the Model 049A is now

available. The Model 049A

has stepped mass targets

instead of spheres. Each

stepped mass consists of six
